Theremax Pro Edition – Learning to Etch a Copper PCB

My brother and I spent a lot of time creating the Theremax, but we only produced one. We decided that I would keep the final product, and I decided that it would be a bit unfair. Thus, I decided to surprise him with his very own Theremax by trying out self-etching of my own PCB.

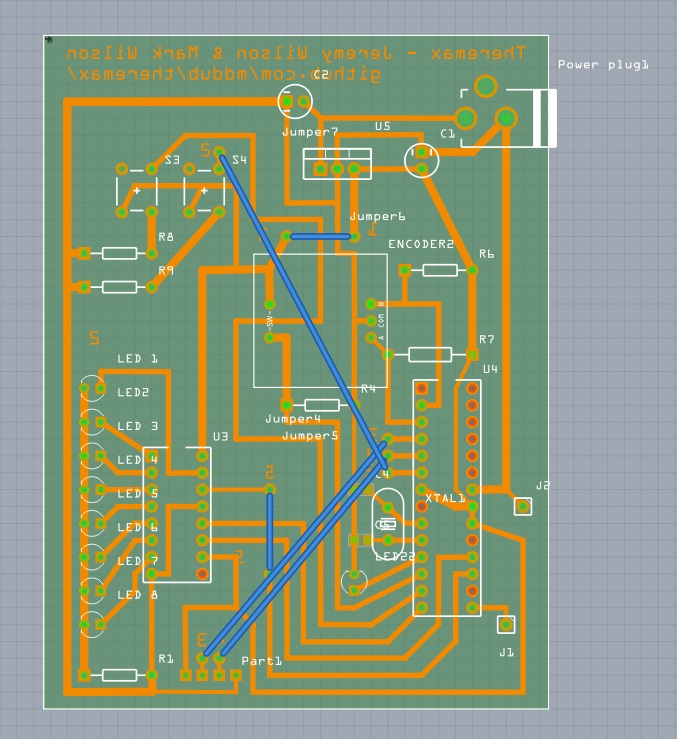

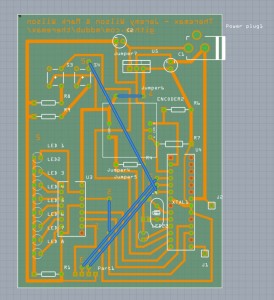

I started out by designing the PCB based on the wiring from the pre-perf PCB schematic I used to create the first Theremax. Since it is a single-sided PCB, I had to use some jumper wires to make it work.

Theremax_Fritzing_Diagram

I then printed the schematic onto photo paper and used a clothes iron to transfer the toner onto the copper board.

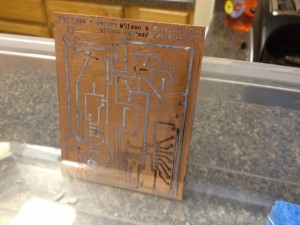

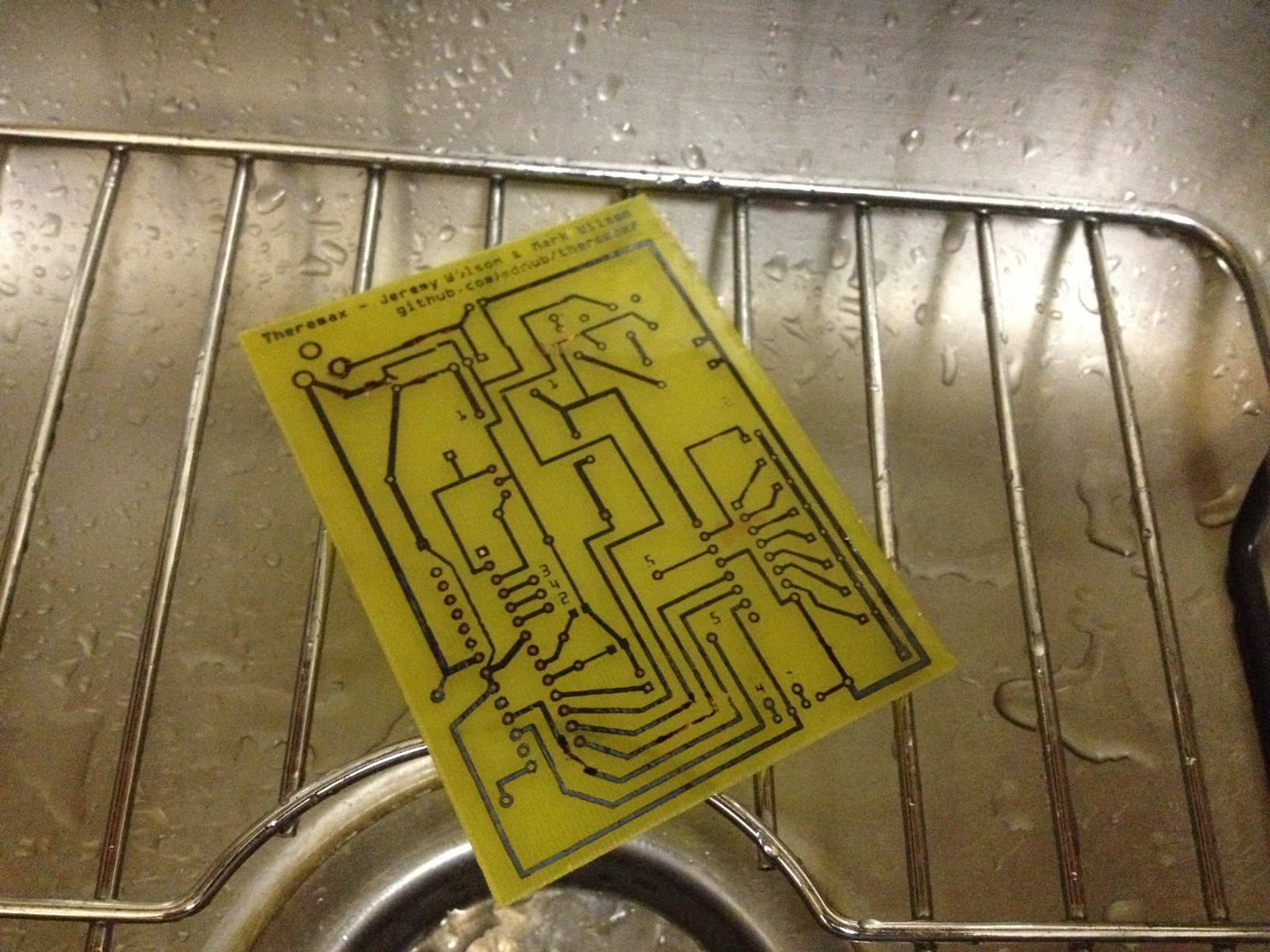

I then etched the board with ferric chloride for about an hour.

image_1

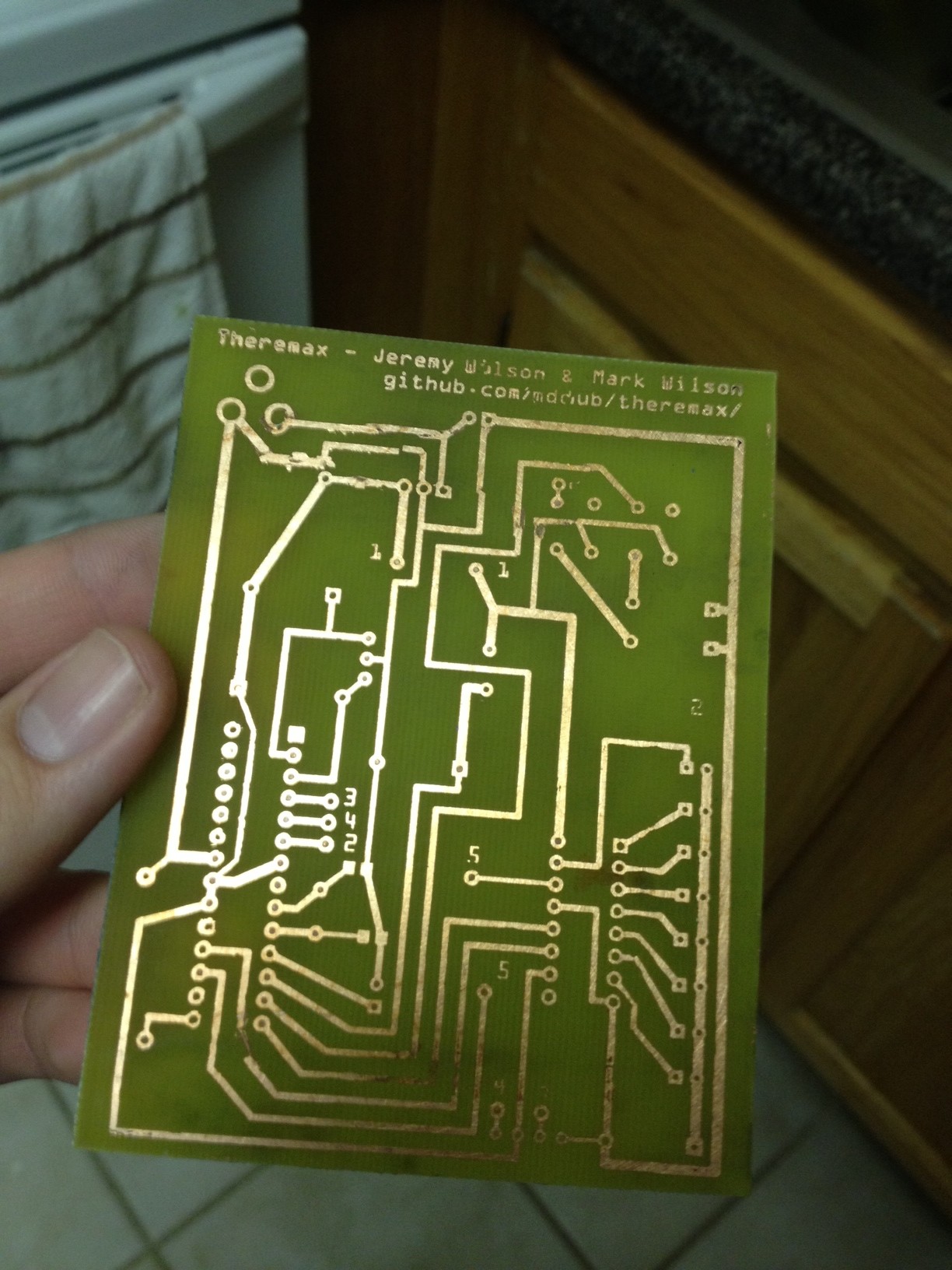

I then removed the toner with the rough side of a sponge. A successful etch!

image_2

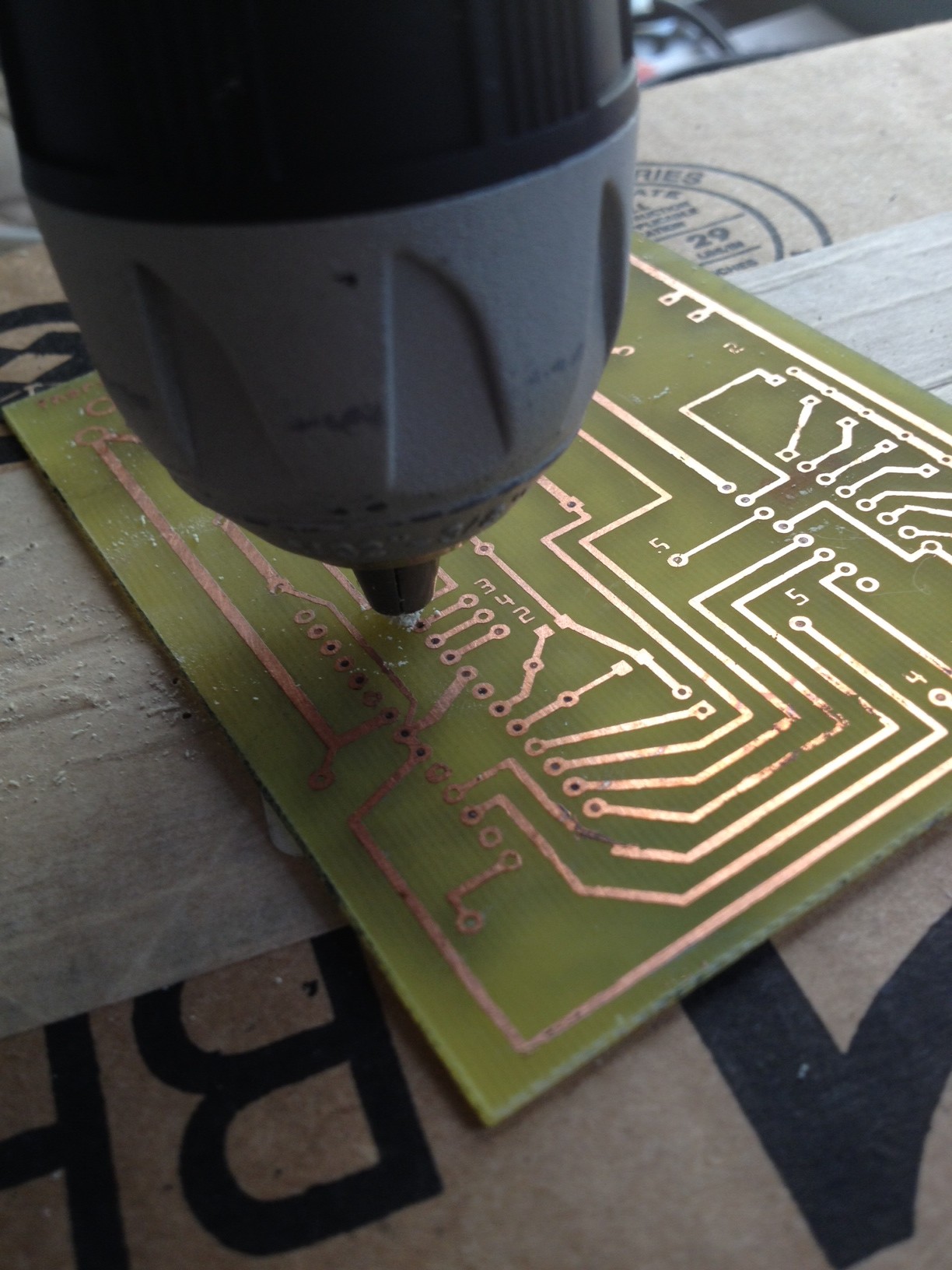

I then used a 1/32" drill bit to drill all the holes required.

image_3

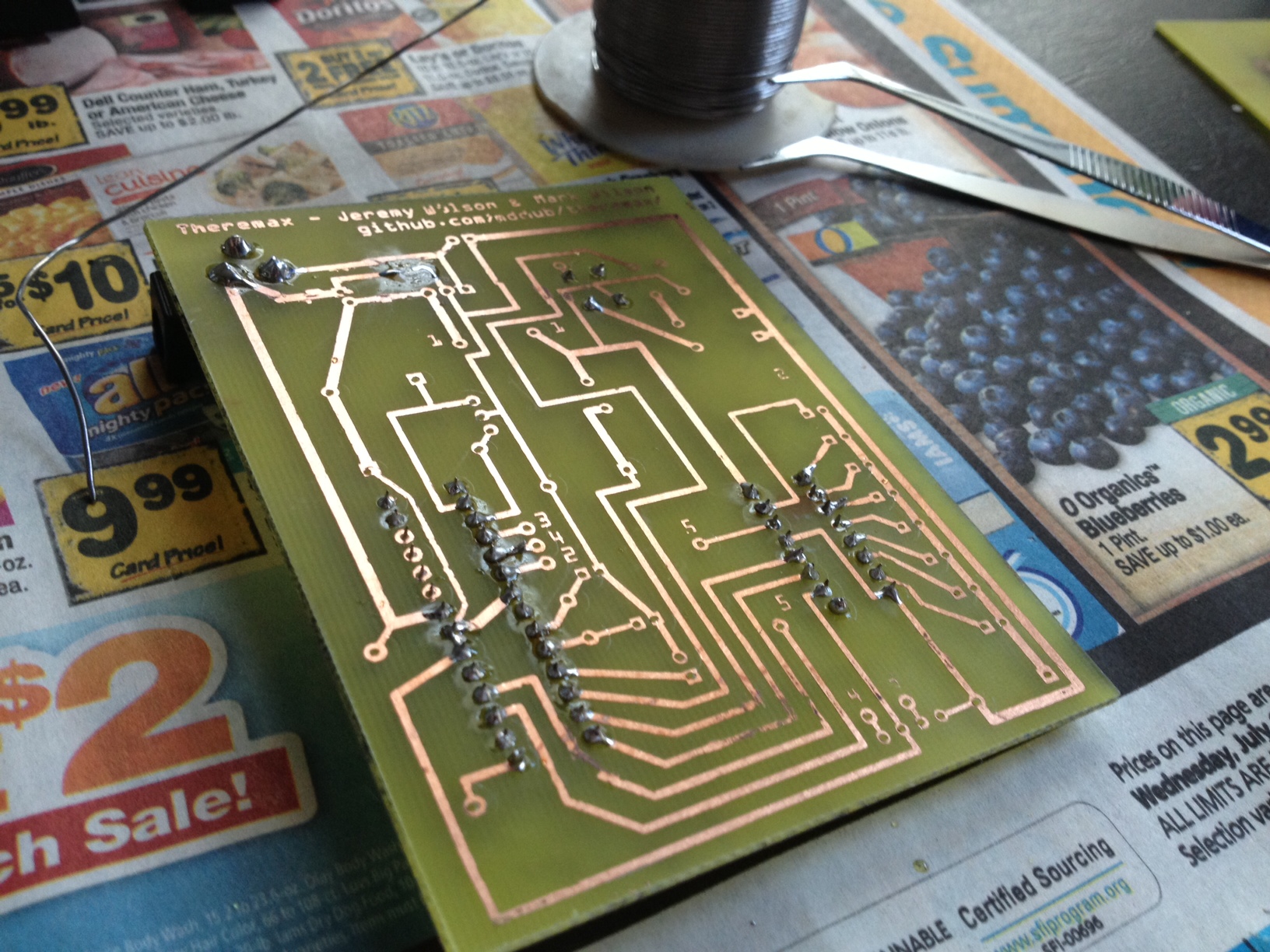

I then began soldering on the components.

image_4

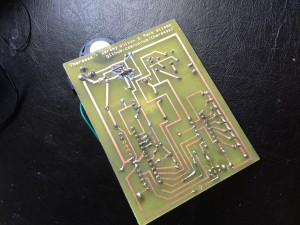

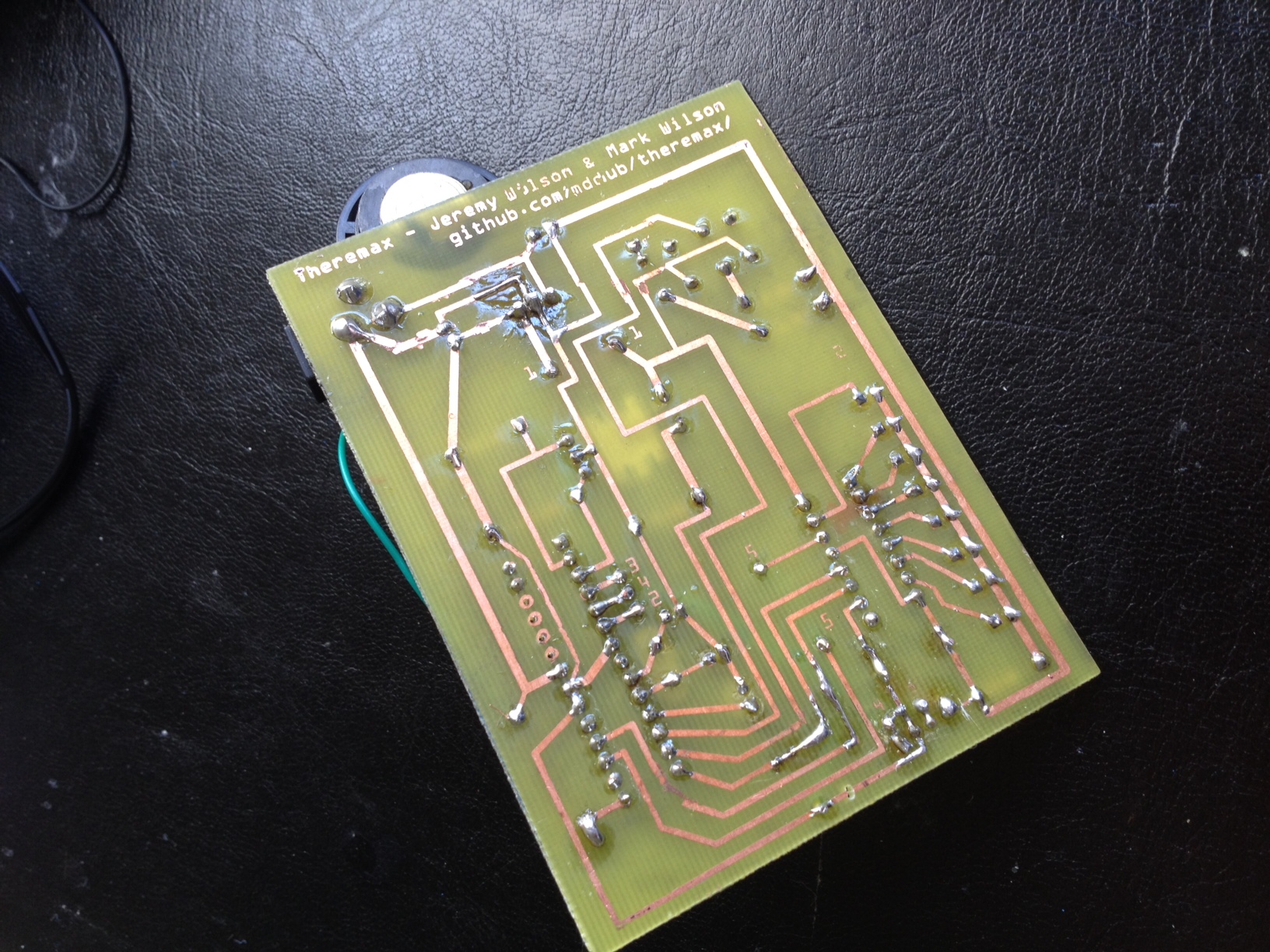

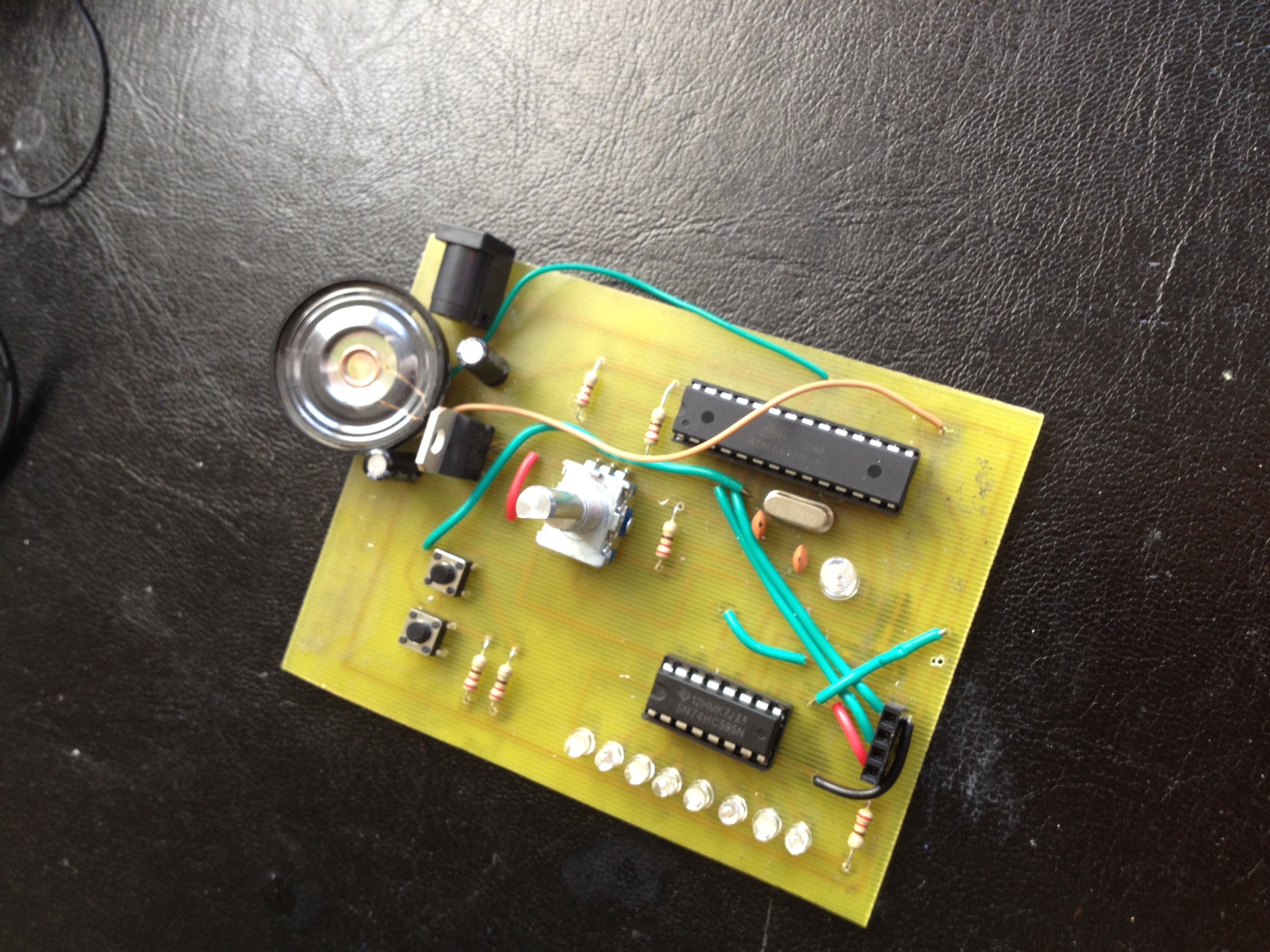

Theremax Pro complete!

image_5image_6

I am glad that I was able to learn how to etch and make my brother an excellent gift at the same time. Etching is not as bad as I expected, and I plan to etch all of my future projects to save hours of wiring and soldering onto pre-perforated boards.
